Minerals Powder Processing System

Focus on the field of micro powder grinding !

50-3000 Mesh Kaolin Powder Milling Machines

Capacity: 1-100 t/h

Max feeding size: 20-40 mm

Processing ability: 1-100 t/h

Range of application: including kaolin and other more than 200 kinds of minerals powder grinding, such as: China clay, calcium carbonate, marble, mica, and so on.

Overview

kaolin powderKaolin is a soft white mineral that has a large array of uses. It is most commonly found in the form of a fine clay that was originally produced in China, which is why this material is sometimes referred to as “China clay.” Among the many uses for this mineral are the paper industry, medications, skincare products, porcelain, and cosmetics. Sources of it can be found all over the world, including the United States, China, Brazil, Australia, and parts of Eastern Europe.



The name comes from the Chinese “Gaoling,” a reference to a mountain that provided an early source of the raw mineral. The Chinese used it to produce their famously fine porcelain, and when European explorers were introduced to Chinese ceramics, many of them remarked on the delicate quality of the work. This was made by possible by kaolin, a material that Europeans were not familiar with, and European ceramicists spent centuries trying to replicate the techniques used to produce it.



Use of Kaolin Powder:



►PP compounds used in automotive and appliances
►PVC cables and masterbatches
►Paints, Paper and Textile Industry
►Paper Industries
►Rubber Industry
►Detergents and washing Soap manufacturing

Benefit

Benefits of 50-3000 Mesh Kaolin Powder Milling Machines



1. Have finely, coarse grinding function.

2. High reliability, strict safety device to ensure equipment and personal safety.

3. Vortex chamber internal air circulation, dust pollution is small.

4. The structure of 50-3000 Mesh Kaolin Powder Milling Machines is simple and reasonable, self crushing, ultra-low cost of use.

5. Unique bearing installation with advanced spindle design, so that the machine has the characteristics of heavy load and high speed rotation.

6. Smooth operation, low noise, high efficiency and energy saving, high crushing efficiency.

7. Affected by the moisture content of the material is small. The moisture content can reach about 8%.

8. Impeller and vortex crushing cavity material lining greatly reduces the cost of wear parts and maintenance workload.

9. Wear parts loss is low, all wearing parts of 50-3000 Mesh Kaolin Powder Milling Machines are used at home and abroad high quality wear-resistant materials, long service life. A small number of easily worn parts made of hard and wear-resistant materials, small size, light weight, easy replacement parts.

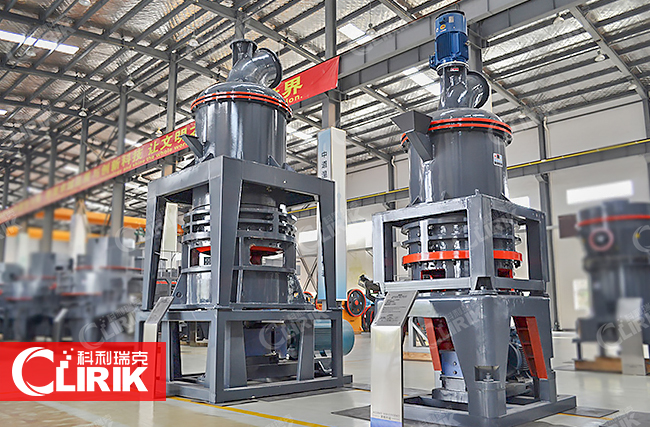

kaolin milling machine

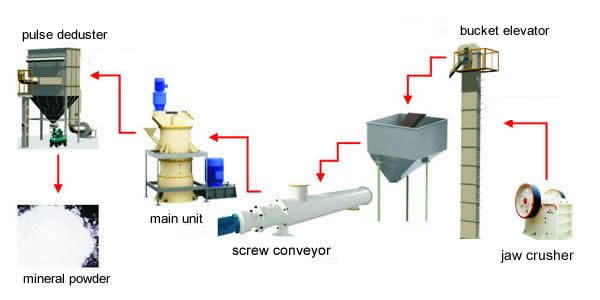

Working principle of 50-3000 Mesh Kaolin Powder Milling Machines



Vibrating feeder evenly send materials into the host and continuously grinding in mill room, after grinding, the powder will flow up by the wind machine, and classified by the classifier, the standard powder will flow through the pipe into the powder collector, the collection is separated by a valve discharge, and this is the final product.

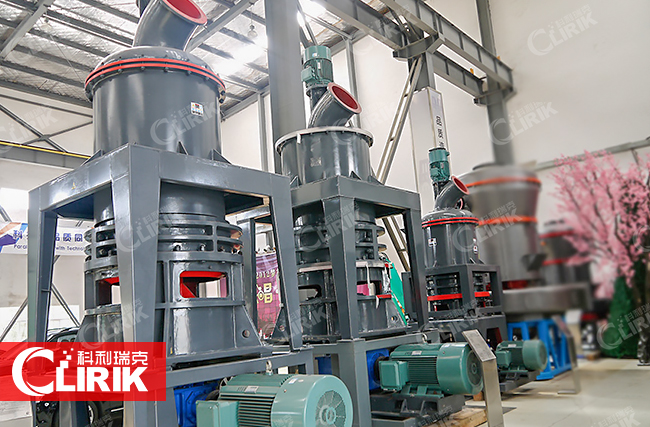

kaolin powder milling machines

Specifications

There are many different kinds of grinding mill can be used in 50-3000 mesh kaolin powder milling



YGM Raymond Roller Mill



Powder Fineness Processing Ability: 50-450 mesh

Capacity: 1-20 t/h

Parameter of Raymond mill for kaolin powder making



Type

Roller

Max. feeding size(mm)

Fineness(mm)

Output(t/h)

Power(kw)

Size(mm)

No.

Dimension(mm)

Height(mm)

YGM7815

3

260

150

15

0.613-0.033

1-3

18.5

4300*3500*5100

YGM8314

3

270

140

20

0.613-0.033

1.2-4.6

22

5300*4100*5200

YGM9517

4

310

170

25

0.613-0.033

2.1-5.6

37

7100*5900*7900

YGM4121

5

410

210

30

0.613-0.033

2.8-10.5

75

9200*7250*9700

MTM1600

6

440

270

35

0.613-0.033

5-20

132

12550*5700*8350





HGM Ultra Fine Grinding Mill



Powder Fineness Processing Ability: 300-2500 mesh

Capacity: 1-45 t/h

Parameter of ultra fine grinding mill for kaolin powder making

Parameters of HGM Series Ultrafine Grinding Mill
Model HGM80 HGM80A HGM90L HGM100L-Ⅱ HGM100P HGM125L HGM1680L
Ring Diameter(mm) 800 800 900 1000 1000 1250 1680
Ring Number (PCS) 3 3 4 4 4 4 4
Input Size (mm) ≤10 ≤10 ≤10 ≤15 ≤15 ≤20 ≤20
Output Size (mesh) 150-3000 150-3000 150-3000 150-3000 150-3000 150-3000 150-3000
Capacity (t/h) 0.5-5.5 0.5-5.5 0.8-6.5 1.2-10 1.2-11 2.5-20 5-45
Outlet Size L*W*H (mm) 8605*4139*6050 10454*3393*6626 11735*3952*7525 14507*3633*7562 14362*4200*7562 19261*4406*8591 25067*5414*9007
Main Motor Power (kw) 75 75 55*2 132/75*2 132/75*2 185 315



CLUM Vertical Roller Mill



Powder Fineness Processing Ability: 300-1500 mesh

Capacity: 10-50 t/h

Parameter of vertical roller mill for kaolin powder making



Main configuration and production

     Model

Item

CLUM1425

CLUM1632

CLUM1736

Working Diameters(mm)

1400

1600

1700

Number of rollers(pieces)

3

3

3

Number of classifier(pieces)

5

7

7

Power of classifier(Kw)

5X15

7X15

7X(15~18.5)

Main unit power (Kw)

250

315

355

Blower power(Kw)

200

250

315

Feed size (mm)

<10mm

<10mm

<10mm

Moisture of feeding material

<3%

<3%

<3%

Less than 2μm=34%

output(t/h)

11-14

13-17

15-19

Less than 2μm=46%

output(t/h)

7-8

9-10

11-12

Less than 2μm=60%

output(t/h)

3-4

/

/

Material: based on calcite

Particle size distribution: measured by micro laser diffraction particle size analyzer in British Malvern3000 instruments
