Ball Mill

Capacity: 20-200t/h

Max feeding size: 25mm

Processing ability: 20-200t/h

Range of application: Barite, quartz, feldspar, mica, calcite, talc, apatite, gypsum, fluorite, limestone, dolomite, diatomite, ceramic soil, clay, marble, granite, fly ash, kaolin, calcium carbonate, slag, bauxite, glass, etc.

Overview

What is a Ball Mill?

Ball Mill is the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.

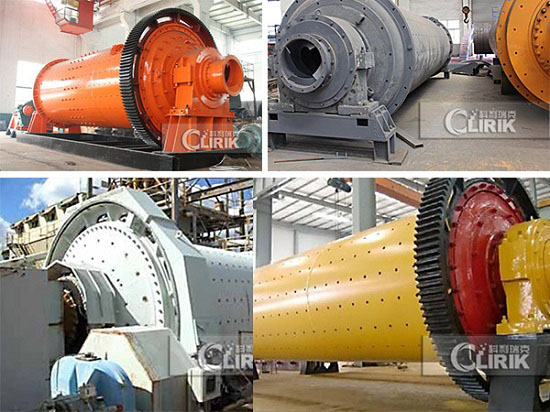

Ball Mill


Ball Mill machine changes the intrinsic grinding mill structure. Its body and ground plank are an integral whole. So when fixing, it can be lowered on a plane surface once only. Use double tiered roller axletree with centripetal spherical surface as the support of the host axletree can reduce energy cost by 30%. The intrinsic grille pattern forcing evacuation is instead by over fall pattern controlling one. This can improve the milling of the granule and the quantity dealt with is reduced by 15-20%.

Ball Mill


 How does a ball mill work?


 Ball Mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Benefit

 Features of Ball Mill:


1.Using large diameter double row spherical roller bearing, reduce friction, reduce the energy consumption of 20-30%.

2.End cover structure, large caliber inlet and outlet, the processing capacity is increased by 15-20%.

3.simple structure, split installation.

4.without inertial impact, the equipment runs smoothly, and reduces the downtime of the mill shutdown and improves efficiency by 15-25%.

Specifications

Specifications of Ball Mill:

Model

Rotary speed(r/min)

weight(t)

Input size(mm)

Discharge size(mm)

Capacity(t/h)

Motor power (kw)

Weight (t)

Ф900×1800

39

1.5

≤20

0.075-0.89

0.8-2

18.5

4.6

Ф900×1800

39

2.7

≤20

0.075-0.89

1-4

22

5.6

Ф1200×3000

36

3.5

≤25

0.074-0.4

1.6-5

37

12.8

Ф1200×4500

32

5

≤25

0.074-0.4

1.6-5.8

55

13.8

Ф1500×3000

27

7.5

≤25

0.074-0.4

2-5

75

15.6

Ф1500×5700

28

12

≤25

0.074-0.4

3.5-6

130

24.7

Ф1830×3000

25

11

≤25

0.074-0.4

4-10

130

28

Ф1830×6400

24

21

≤25

0.074-0.4

7-16

210

34

Ф1830×7000

24

23

≤25

0.074-0.4

8-18

245

36

Ф2100×3600

23

19

≤25

0.074-0.4

10-36

210

46

Ф2200×4500

21

27

≤25

0.074-0.4

12-23

280

48.5

Ф2200×6500

21

35

≤25

0.074-0.4

14-26

380

52.8

Ф2200×7000

21

35

≤25

0.074-0.4

15-28

380

54

Ф2200×7500

21

35

≤25

0.074-0.4

15-30

380

56

Ф2400×4500

21

30

≤25

0.074-0.4

18-45

320

65

Ф2400×8000

20

36

≤25

0.074-0.4

20-48

410

81

Ф2700×3600

21

39

≤25

0.074-0.4

19-75

400

83

Ф2700×4000

20

40

≤25

0.074-0.4

20-78

400

85

Ф2700×4500

20

48

≤25

0.074-0.4

22-85

430

89

Ф3200×4500

18

65

≤25

0.074-0.4

29-140

800

137

Ф3200×5400

18

81.6

≤25

0.074-0.4

30-180

800-1000

146

Ф3600×4500

17

88

≤25

0.074-0.4

35-210

1000

190

Ф3600×6000

17

117

≤25

0.074-0.4

38-240

1250-1500

220

Ф3600×8500

17

144

≤25

0.074-0.4

45-260

1800

260
